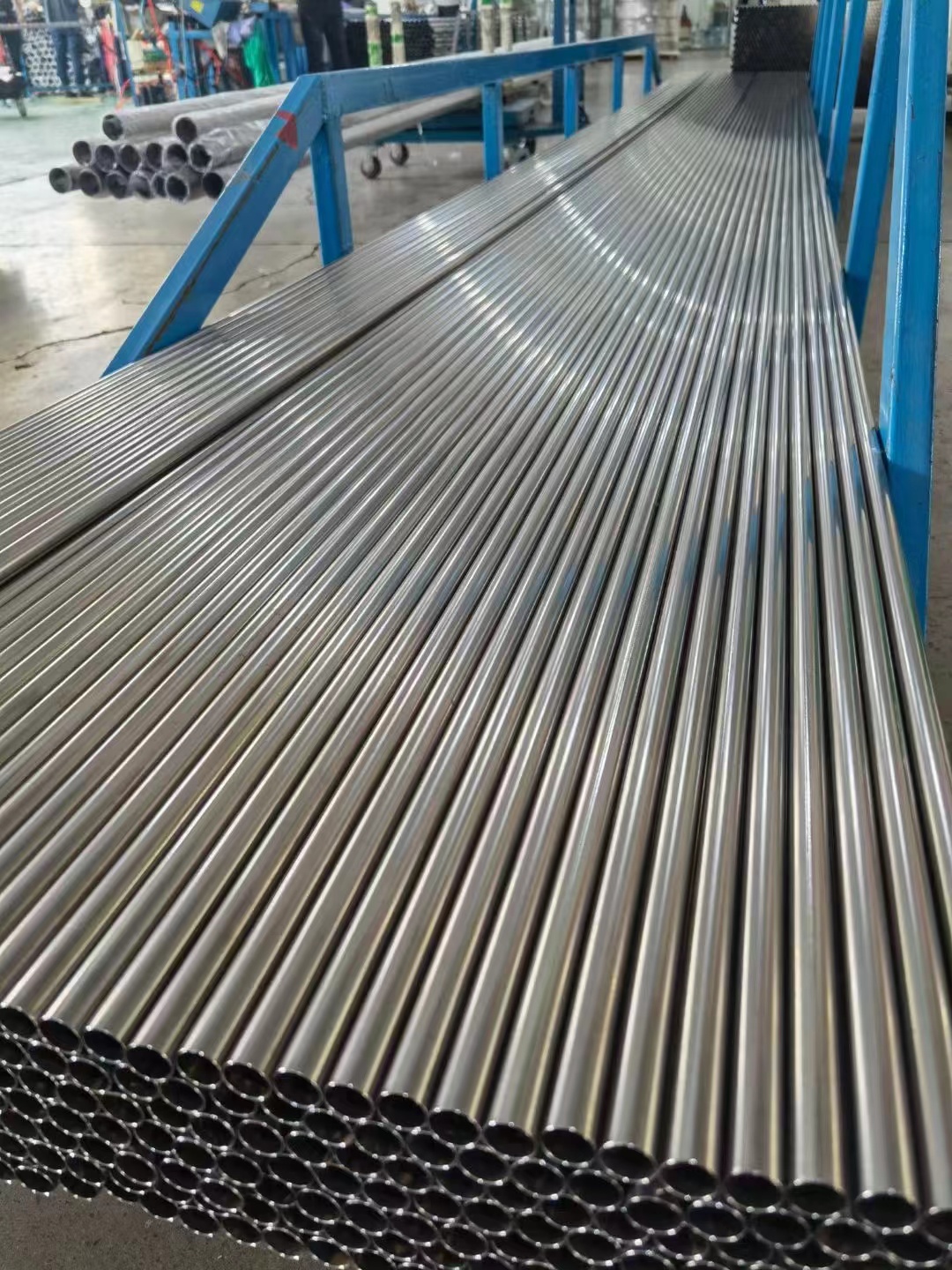

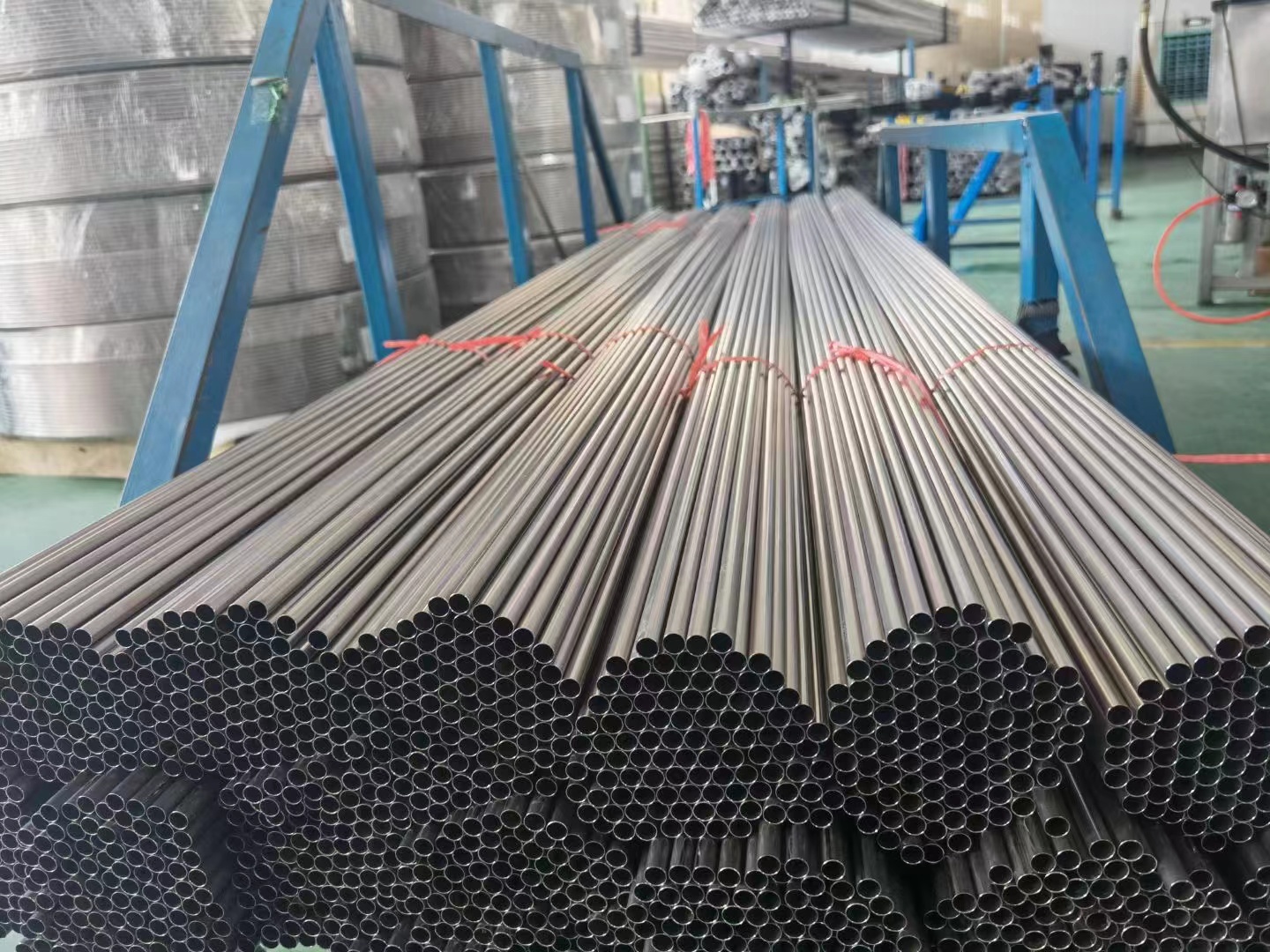

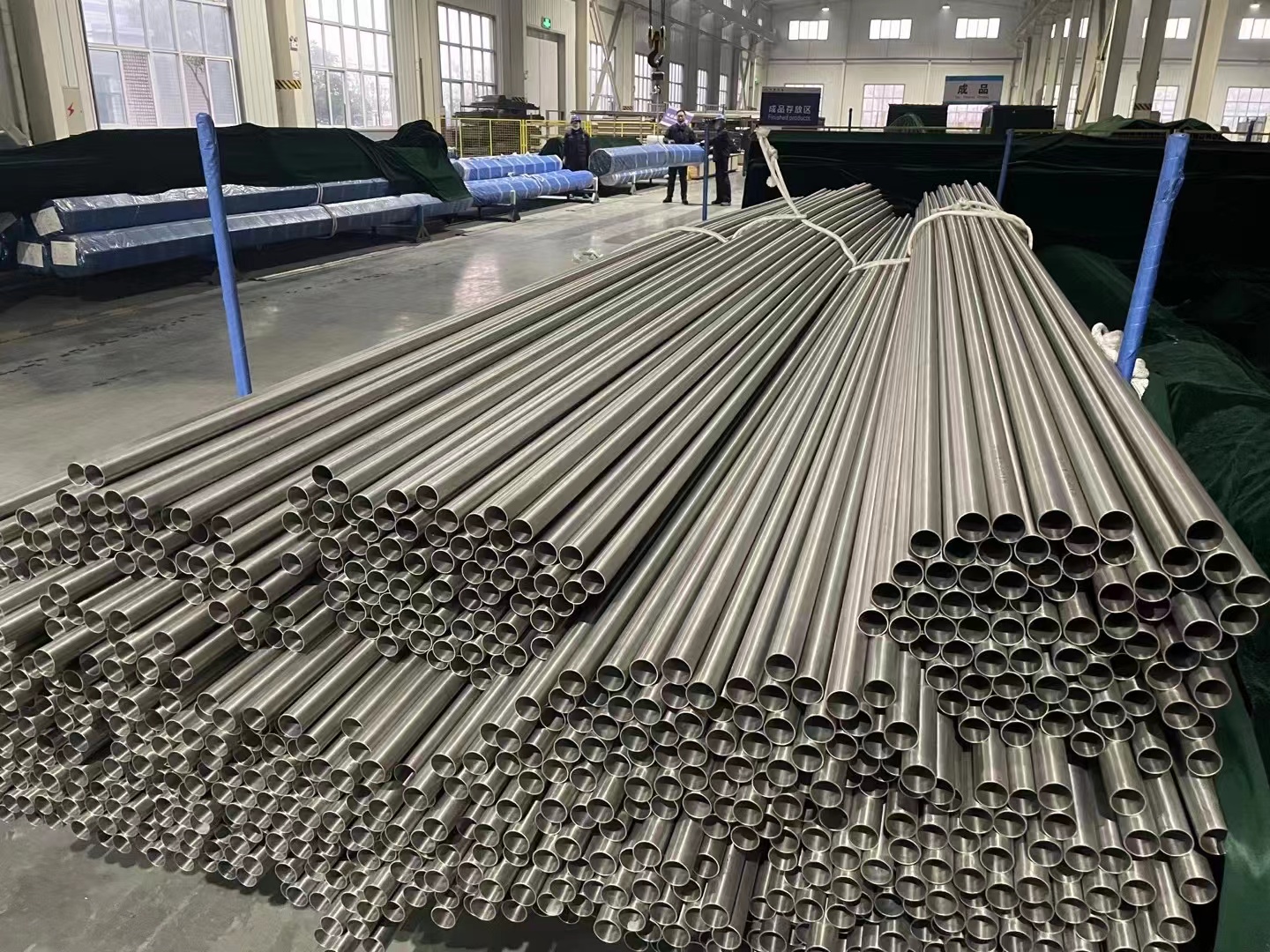

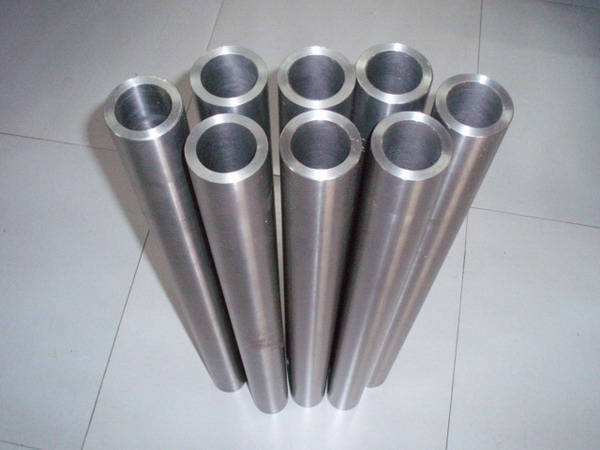

Titanium tube

Product Material：TA0，TA1，TA2，TA9，TA10，BT1-00，BT1-0，Gr1，Gr2

Executive Standard：GB/T3624-2010　GB/T3625-2007 ASTM B337 338

Introduction：

Specification:

Product Name

Titanium and titanium alloy tube / pipe

Material

titanium and titanium alloy

Color

silvery white

Standard

ASTM B337, ASTM B338, ASTM B861, ASTM B862

GOST22879-86

Grade

C.P.Ti,Ti-6Al-4V,Ti-6Al-4V ELI,Ti-6242,Ti-0.3Mo-0.8Ni,Ti-3Al-2.5V,Ti-0.2Pd

Certification

ISO9001,EN10204 3.1


Cold-rolled tubes and pipes specification

Outside diameter:10-114mm

Wall-thickess:0.5-5.5mm

Length:O.D.10-15mm 4,000mm max. O.D.over 15mm 12,000mm max.


Extruded pipes specification

Outside diameter:25-210mm

Wall-thickess:4-30mm

Length:1000-10000mm



Surface treatment — drill hole – heating extrusion – straightening -- saw cutting -- multi-pass rolling -- multiple annealing – straightening -- cut to length -- water pressure -- nondestructive testing -- performance testing -- surface and dimension check


Physical properties:

Material Grade

Tensile strength(MPa)

Yield strength(MPa)

Elongation (%)

Gr1 (CP1 Titanium, low oxygen)

≥240

≥138

≥24

Gr2 (CP2 Titanium, standard Oxygen)

≥345

≥275

≥20

Gr3 (CP3 Titanium, standard Oxygen)

≥450

≥380

≥18

Gr5 (Titanium, Ti-6Al-4V)

≥895

≥828

≥10

Gr7 (Titanium, 0.12-0.25%Pd)

≥345

≥275

≥15

Gr9 (Ti-3Al-2.5V)

≥620

≥483

≥10

Gr11(Ti-Pd0.12-0.25%, low Oxygen)

≥240

≥138

≥24

Gr12(Ti-0.3%Mo-0.8%Ni)

≥483

≥345

≥18

Gr16(Ti+Pd0.04-0.08%, standard Oxygen)

≥345

≥275

≥20

Gr17(Ti+Pd0.04-0.08%, low Oxygen)

≥240

≥138

≥24


Grade

N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

1

0.03

0.08

0.015

0.2

0.18

/

/

/

/

/

Bal

2

0.03

0.08

0.015

0.3

0.25

/

/

/

/

/
